Project Vasari – Station Canopy Roof

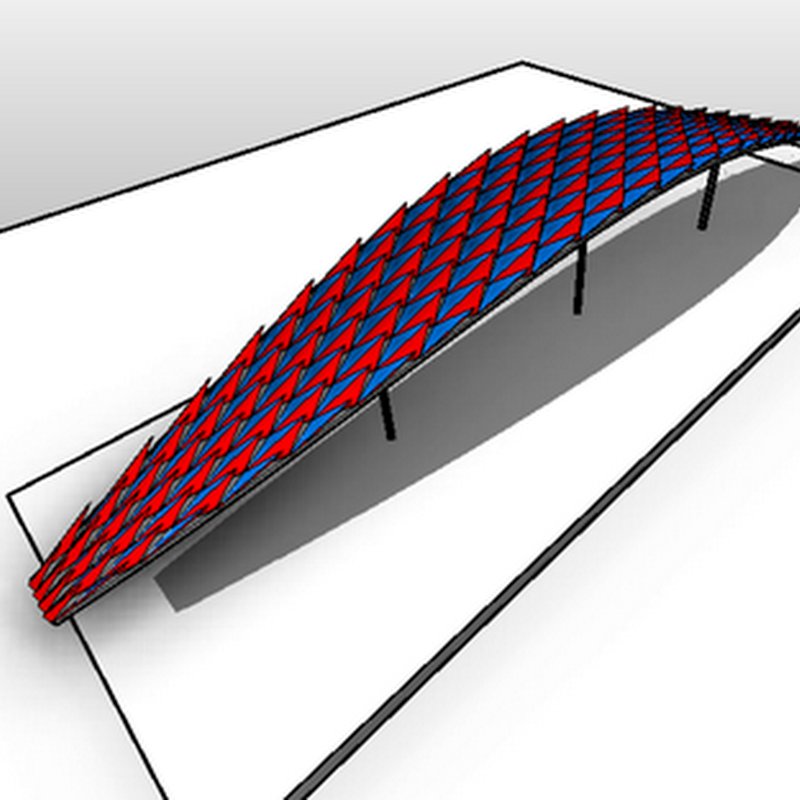

Last year we did a competition for a railway station in London as part of the Crossrail development. The designer came up with a rather funky, yet beautiful looking roof for the proposed new station.

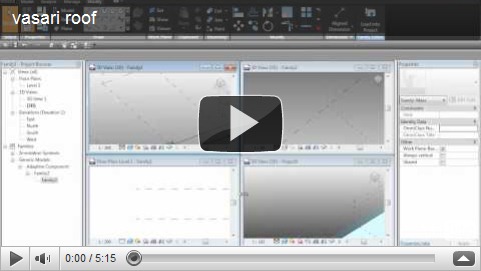

Unfortunately we didn’t win the competition, The roof was actually modelled in another application, but I was able to produce it easily in Revit 2010. So I thought I’d show you how to do it in Vasari using an adaptive component family nested into a mass loaded into a project. Hope you enjoy.BTW I don’t normally work this fast!!! :-)
