Tuesday, January 24, 2012

More colour stairs ;-)

Like a lamb to the slaughter, I knew my stair post would get my ass kicked! So I would like to extend my thanks to all those that took the time to respond; as they say “there is more than one way to skin a cat”. So lets go through all the options….

tchuffart & unknown suggested……

You could turn the ghost surface on for the stairs, and it will match all the underlying colour you need.


Steve, Andy H , AFriend, Carlos Vav suggested similar approaches….

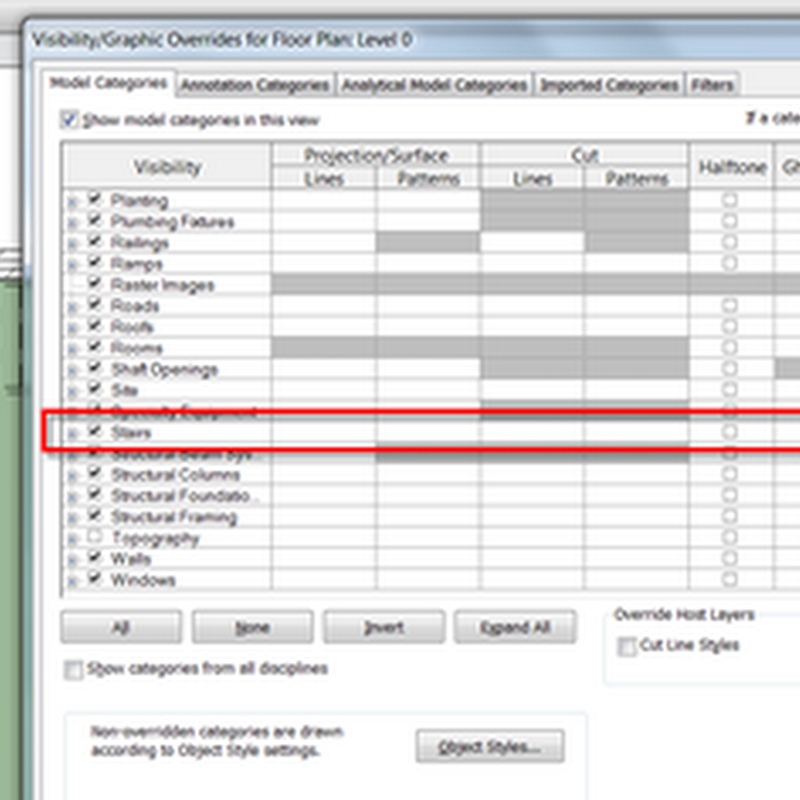

If you tick the transparent box in the views visibility / graphic override you will get the same effect but have the benefit that if the colour fill changes you don't have to amend each element. In 2012 this will not appear correct in the view but will print out correct (the ghosted one appears correct but doesn’t appear correct).


jojo1579 suggested….

There is a simple way to do this. In your Floor Plan properties change Colour Scheme Location from 'background' to 'foreground' on. (note the issue this is that the colour extends into the wall).image


So there you are, take your pick!

2 comments:

Unknown said...

David even thoug you took a hit on this one it is nice to see all the differnt ways users work around this issue.

Shahab Khalaj said...

If you assign Solid Fill with white color on your walls it will replace the color scheme. But, it only works on coarse.
