Hauer Opus Panels in Revit 2010

Thought I'd share this with you all. Last year I managed to create an Hauer Opus panel in Revit 2009. This was achieved by nesting various components into a cw panel family. So when 2010 was released, I was keen to find out whether I could create the panel using the new cw pattern based family. Its taking me a couple of months to find time to look at this, but I have been working on this challenge now for 3 days and I have finally got there! I need to get out more! :-)

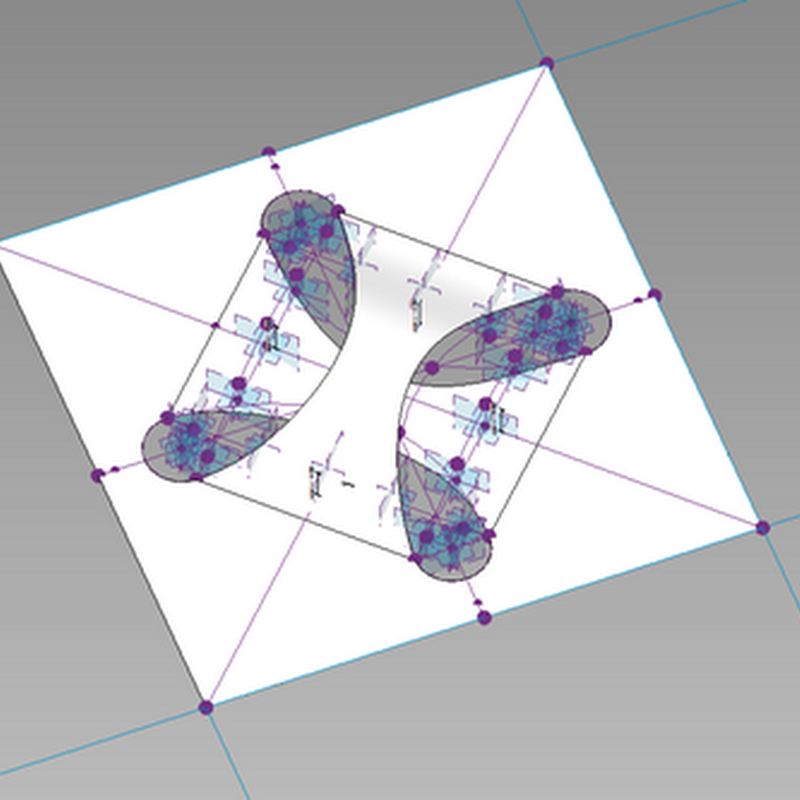

2010_HAUER_1

I will explain more in a future post. BTW it does have parameters, so I can control the shape.

2010_HAUER_3

2010_HAUER_2

2 comments:

Erik said...

Very Nice

Scott D Davis said...

Now give it some thickness... :-)
