Revit 2011 – sketch on non planar surface

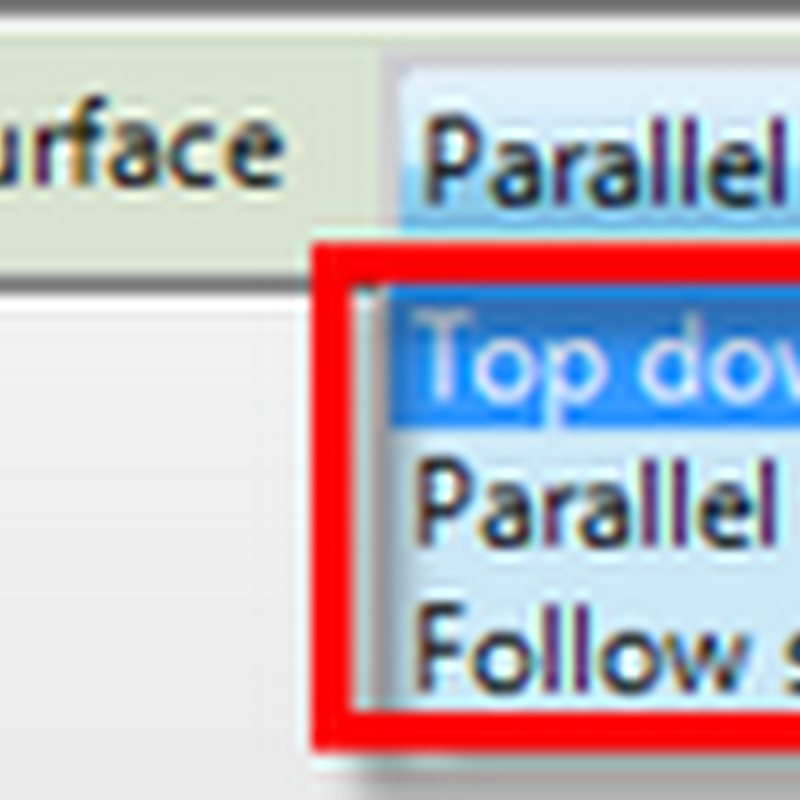

One little gem that has appeared in Revit 2011 Subscription Advantage Pack AS WELL as SP2 I believe, is the ability to sketch model lines on non planar surface within the concept design environment. You can sketch on a surface with a line, a spline or a rectangle. This has been introduced to assist in the ability to sketch openings when using the CEA (Conceptual Energy Analysis) tool. However, it has many potential uses over and above this.  There are three possible parameter options available to you:-
  1. Top Down
  2. Parallel to Level
  3. Follow Surface UV
So let me quickly explain what three parameters seem to do.
Top Down
The Top down parameter seems a little bit of a mystery to me, but having experimented with it a little, when you draw rectangle it seems to deform to the surface following the UV lines, but at the same time the points snap to the edges. I actually don’t think I have fully understood this and I know my Autodesk friends read this blog, so I am sure they will pipe up and hopefully provide true explanation for this parameter. Ladies and Gents?

EDIT:- Heres Zach Kronz reply to what this particular parameter does

Hi David,
The "top down" option makes a bit more sense when you use something that has a less steep slope. When using this setting, your rectangle will resolve into a right angle rectangle when seen in plan. It gets a little whacky in situations like you are showing, but it is essential a vertical projection of a rectangle.

Parallel to Level
If you draw a rectangle on a surface, the rectangle will always remain parallel to a level it references. Notice in the image below that the rectangle is a true rectangle, the top and bottom edges are parallel to the level and the side edges are perpendicular to the level, @ 90 degrees.
Follow Surface UV
Now do the same exercise as above, but this time change Follow Surface UV and draw a rectangle. This time you will notice that the rectangle will follow the natural UV flow of the surface.
It becomes clearer, once you divide your surface and enable the UV lines, as in the example below.

4 comments:

theo.dore said...

Thanks David.
But you should mention that 3D_Snapping has to be enabled for SketchOnSurface to be exposed. Why Autodesk would chose to hide it is beyond me.
Also, the Spline line will not work on a surface - but the SplineThroughPoints will. However the points placed will be consumed in the process, strangely.
And my final point would be that Point elements in themselves can be placed on a non-planar surface although no SketchOnSurface option is displayed.
hy Point elements are part of the Line tools is a mystery to me as well, actually. Points are not Lines - they are one-dimensional objects as opposed to lines, which are two-dimensional.
Cheers!

Zach Kron said...

Hi David,
The "top down" option makes a bit more sense when you use something that has a less steep slope. When using this setting, your rectangle will resolve into a right angle rectangle when seen in plan. It gets a little whacky in situations like you are showing, but it is essential a vertical projection of a rectangle.

Daniela Cubero said...

hi david!I Find this post extremely useful, cause I've trying to figure out it for some months, the problem is that I can´t actually find the option of sketch on surface; as I see on your attached image it must be on the side of the 3d snaping and chain options when you are about to draw a model line, although I´m using 2011 version it doesn´t appear there!

I really would appreciate your help

Daniela

Daniela Cubero said...

Oh, I did´nt realized that you commented that it was an advantage of Revit 2011 Subscription Advantage Pack...mm how can I get that pack??

Thank you
Daniela
